A Hybrid Analog Synth with Deep Sound Design Power
The Korg minilogue xd is an evolved version of the original minilogue, expanding its analog foundation with a powerful digital multi-engine, high-quality stereo effects, and an upgraded sequencer. Designed as a compact yet versatile hybrid synthesizer, it combines hands-on analog control with modern digital flexibility, making it suitable for beginners, experienced producers, and live performers alike.
With its four-voice polyphony, 37-key Slim-Key keyboard, and distinctive joystick controller, the minilogue xd sits comfortably between the simplicity of the original minilogue and the more expansive Prologue series, offering a strong balance of price, features, and sonic range.
Rating: ★ 8.9 / 10
Design and Build Quality

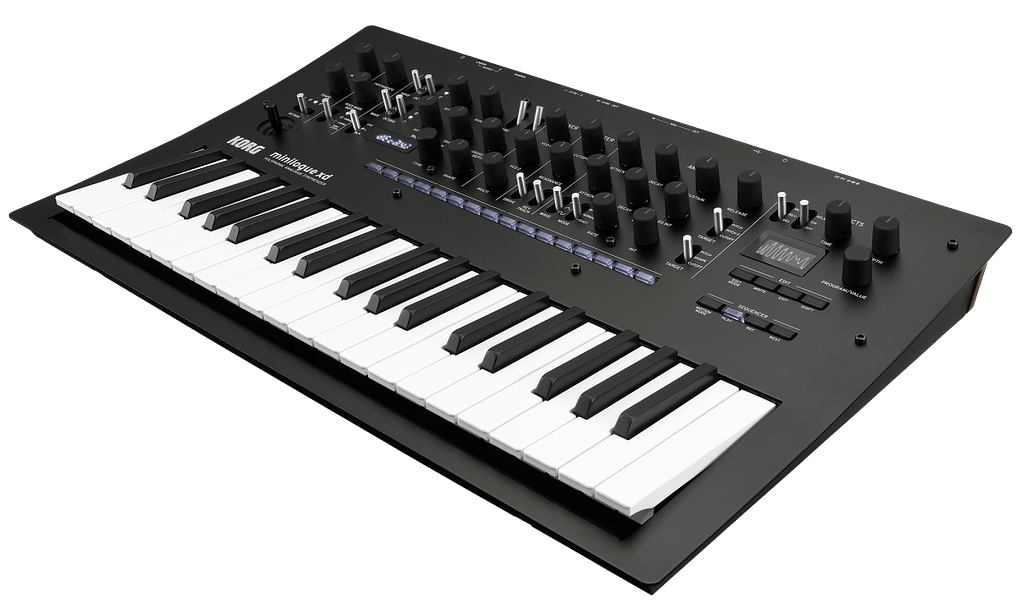

Visually and physically, the minilogue xd retains Korg’s recognizable design language, featuring a solid metal top panel, wooden rear accents, and sturdy knobs and switches. The translucent backlit buttons and bright LEDs improve visibility during live use, while the OLED display provides waveform visualization and clear feedback during sound design.
The familiar 37-key Slim-Key velocity-sensitive keyboard keeps the instrument compact and portable. While opinions on slim keys remain divided, many users appreciate the ability to play fast passages and wide intervals more easily than on full-size keys, particularly in space-limited setups. Reviews-korg
A notable improvement over the original minilogue is the spring-loaded metal joystick, which replaces the older angled stick. This joystick allows independent pitch bend amounts left and right, plus two assignable modulation directions when pushed up or down. These movements can also be recorded into the sequencer, making the joystick a powerful performance and sound-shaping tool.
Sound Engine and Architecture
At its core, the minilogue xd is a hybrid synthesizer built around a 2 VCO analog signal path combined with a digital Multi-Engine oscillator. The full voice structure consists of 2VCO + Multi-Engine, 1VCF, 2EG, 1VCA, and 1LFO, with four voices of polyphony. Reviews-korg
The two analog oscillators offer saw, triangle, and square waves, along with cross modulation, oscillator sync, and ring modulation. Tuning is stable after a short warm-up, and the oscillators deliver the warm pads, fat basses, and sharp leads expected from Korg’s analog designs.
The Multi-Engine, inherited from the Prologue, significantly expands the sonic palette. It includes:
- A Noise Generator with multiple noise types
- A VPM (Variable Phase Modulation) oscillator capable of FM-style tones
- User oscillator slots (16 total), allowing third-party or custom oscillators to be loaded
This digital oscillator can function as a harmonic layer, a textural element, or even as a sub-oscillator beneath the analog VCOs, dramatically increasing sound design flexibility.
Filter, Drive, and Modulation
The minilogue xd features a two-pole analog filter with a wide frequency range and a strong tonal character. Although it loses the four-pole option found on the original minilogue, the filter retains bass well at high resonance settings and excels at everything from smooth pads to aggressive leads.
A two-position drive switch, borrowed from the Prologue, allows the signal to be pushed from subtle warmth into heavy saturation. Combined with oscillator level boosting and mixer feedback, the xd can easily transition from clean analog tones to gritty, overdriven textures.
The envelope section includes a full ADSR for the amplifier and an AD envelope for filter and pitch modulation. While this is a structural change from the original minilogue, it enables additional modulation destinations. The LFO offers multiple waveforms and operates in Normal, BPM-synced, or One-Shot modes, adding rhythmic and percussive modulation possibilities.
Sequencer and Performance Modes
The 16-step polyphonic sequencer is a major highlight of the minilogue xd. Borrowing features from the Monologue, it allows direct step access, real-time and step recording, swing, gate length adjustment, and sequence length control. Motion sequencing lets users record automation for up to four parameters, including Multi-Engine changes and voice mode transitions.
A key workflow improvement is that the sequencer continues playing when programs are changed or saved, making live pattern chaining and improvisation far more practical. The built-in arpeggiator can run simultaneously with the sequencer and offers 13 modes, including chord arpeggiation. Reviews-korg
Voice modes include Poly, Unison, Chord, and Arp/Latch, with a dedicated Voice Mode Depth control that changes behavior depending on the selected mode.
Effects and Stereo Output
One of the most significant upgrades over the original minilogue is the inclusion of three simultaneous digital effects: modulation, delay, and reverb. These effects run on 32-bit floating-point DSP and include chorus, phaser, ensemble, tape-style delay, and multiple high-quality reverbs.
Unlike the original minilogue, the xd features stereo outputs, allowing the effects to shine in full width. The instrument also supports user-loadable effects (16 slots), further extending its sonic potential.
Specifications (Official Highlights)
- 4-voice polyphony
- 37-key Slim-Key velocity-sensitive keyboard
- Hybrid architecture: 2 analog VCOs + digital Multi-Engine
- Two-pole analog VCF with drive
- 16-step polyphonic sequencer with motion recording
- Three simultaneous stereo digital effects
- 500 program memory slots

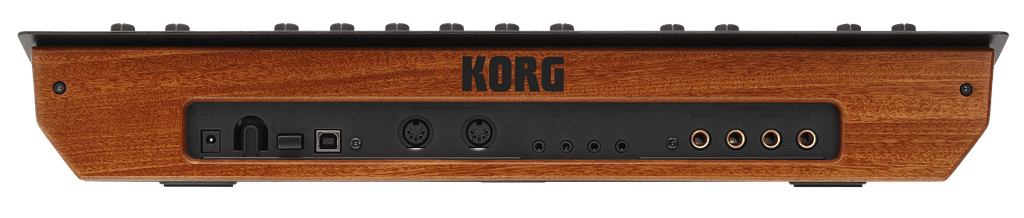

- Stereo outputs, MIDI I/O, USB, CV inputs, and damper pedal input
Advantages
- Hybrid synthesis combining analog warmth with digital flexibility
- Multi-Engine allows user oscillators and third-party expansions
- Excellent stereo effects that significantly enhance the sound
- OLED display with waveform visualization
- Strong sequencer with motion recording and live-friendly workflow
- Compact, portable design with solid build quality
- Outstanding value for the feature set and sound quality
Limitations
- Slim keys may not suit all playing styles
- Patch saving workflow can be unintuitive
- Four-voice polyphony can feel limiting for dense chords
- Some parameters still require menu navigation
- Drive circuit can slightly reduce output volume when engaged
Verdict
The Korg minilogue xd successfully builds on the strengths of the original minilogue while adding meaningful upgrades that dramatically expand its creative range. Its hybrid engine, powerful effects, improved sequencer, and user-expandable architecture make it one of the most versatile compact synthesizers available today.
While the slim keys and limited polyphony may not appeal to everyone, the minilogue xd remains an exceptional instrument for sound design, live performance, and studio production — offering a rare balance of affordability, depth, and personality.
