A Compact Hybrid Synth Built for Fast Ideas and Fun Performance
The Roland JD-Xi is a compact analog/digital crossover synthesizer designed to deliver maximum creative output from a minimal footprint. Combining a true monophonic analog synth engine, two digital SuperNATURAL synth parts, PCM drum kits, and a four-track pattern sequencer, the JD-Xi positions itself as a portable all-in-one groovebox for songwriting, sketching, and live experimentation.
With added features like a built-in vocoder, AutoPitch, and an included gooseneck microphone, the JD-Xi goes beyond traditional synth duties and leans heavily into performance-oriented creativity, all while remaining affordable and easy to approach.
Our Rating: ★ 8.4 / 10
The JD-Xi earns its score for its hybrid sound engine, strong sequencing features, vocal tools, and excellent value. Deductions reflect its mini keys, plastic build, and limited depth of the analog section, but overall it remains a highly enjoyable and capable creative instrument.
Design and Build Quality
The JD-Xi is small, lightweight, and clearly designed with portability in mind. It features 37 velocity-sensitive mini keys, which keep the instrument compact but may not appeal to players accustomed to full-size keyboards. The overall construction relies heavily on plastic, including the encoders and buttons, giving it a budget-oriented feel, though this helps keep the weight down to just 2.2 kg (4 lbs 14 oz).

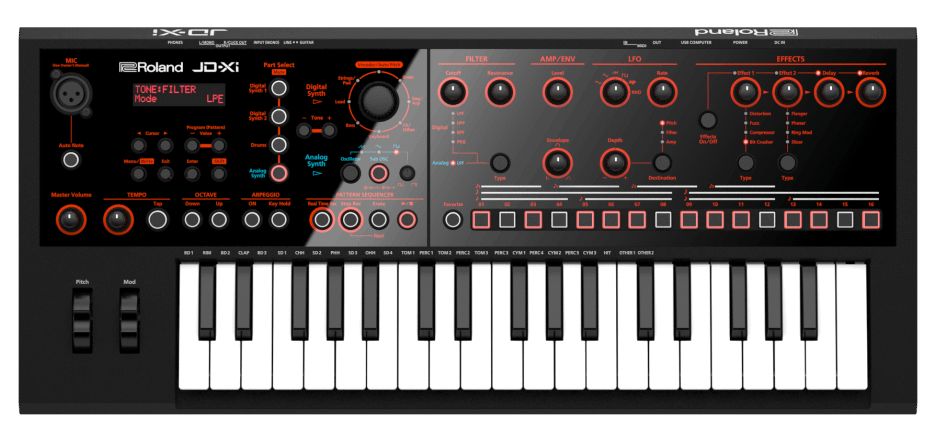

The front panel layout is logical and performance-friendly, with dedicated sections for the analog synth, digital synths, drums, sequencer, and effects. A small 2-line LCD display handles deeper editing tasks, though it can feel limiting when navigating complex digital parameters.
Hybrid Sound Engine
At the core of the JD-Xi is its interactive hybrid architecture, combining analog warmth with digital flexibility:
- Monophonic Analog Synth Section
- Features saw, triangle, and square waveforms with pulse-width modulation, an independent sub-oscillator, and a fully analog filter. This section excels at basses and leads, delivering the warm, punchy character associated with classic Roland analog designs.
- Two Digital SuperNATURAL Synth Sections
- These provide polyphonic PCM-based sounds, including pads, strings, brass, and modern synth textures. Together with the analog part, the JD-Xi can handle layered arrangements despite its compact size.
- Drum Part
- Includes high-quality electronic and acoustic drum kits, with classic Roland flavors such as 808- and 909-style sounds. Individual drum sounds can be edited for filter, envelope, pitch, and pan, allowing deeper customization than many compact grooveboxes.
Maximum polyphony reaches 129 voices total, with 128 voices for digital synths/drums and 1 voice for the analog synt
Sequencer and Groovebox Workflow
One of the JD-Xi’s strongest features is its four-track pattern sequencer, consisting of:
- 2 digital synth tracks
- 1 analog synth track
- 1 drum track
The sequencer supports real-time recording, step input, and TR-REC mode, inspired by Roland’s classic TR drum machines. This makes beat programming intuitive and familiar, especially for users with prior Roland experience. Patterns can be played, edited, and tweaked live, making the JD-Xi particularly effective as a standalone sketchpad and performance tool.
Vocoder, AutoPitch, and Vocal Features
The JD-Xi includes a gooseneck microphone and dedicated vocal processing tools:
- Vocoder, controlled via the keyboard
- AutoPitch, for robotic and modern vocal effects
- AutoNote, allowing vocal input to trigger synth sounds
These features add a playful and expressive dimension that is rare at this price point, especially in such a compact instrument. While powerful, some users report that the vocoder can be tricky to dial in and may require careful gain staging to avoid popping artifacts.
Effects and Sound Shaping
The JD-Xi offers four simultaneous effects sections:
- Effect 1: Distortion, Fuzz, Compressor, Bit Crusher
- Effect 2: Flanger, Phaser, Ring Mod, Slicer
- Delay: 2 types
- Reverb: 6 types
Each effect section can be independently enabled per synth part or drums, allowing flexible sound design and mix shaping within the instrument itself.

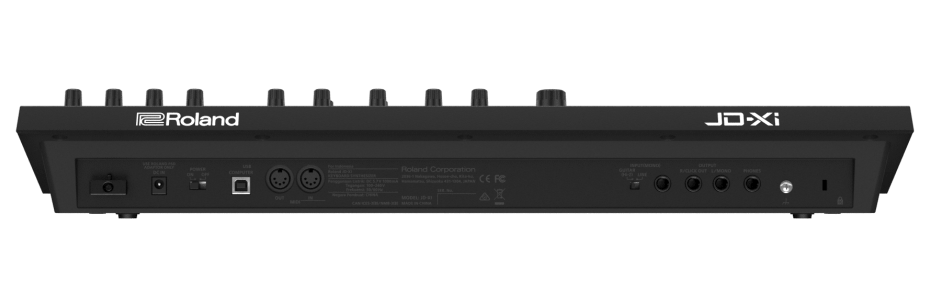

Connectivity and Integration
Connectivity is solid for a compact synth:
- USB Audio/MIDI for DAW integration
- MIDI In/Out
- Stereo outputs (L/Mono, R)
- Line/Guitar input
- XLR mic input
- Headphone output
USB connectivity allows the JD-Xi to function as both a MIDI controller and an audio interface, making it easy to integrate into computer-based setups.
Advantages
- Hybrid analog/digital engine offers strong sonic versatility
- True analog synth section for bass and lead sounds
- Two digital SuperNATURAL synth parts with high polyphony
- Four-track pattern sequencer with TR-REC mode
- Built-in vocoder, AutoPitch, and included microphone
- Compact, lightweight, and highly portable
- Classic Roland drum sounds included
- Strong value for money as a standalone groovebox
Limitations
- Mini keys may not suit all players
- Plastic build feels budget-oriented
- Analog synth section is relatively basic
- Deep digital editing requires menu navigation or external editor
- Vocoder can be difficult to fine-tune
- No aftertouch on the keyboard
Verdict
The Roland JD-Xi excels as a compact, creative, all-in-one instrument for quickly generating musical ideas. Its blend of analog warmth, digital versatility, sequencing power, and vocal processing makes it especially appealing for producers who value immediacy and fun over deep workstation complexity.
While it doesn’t aim to replace a full-size synth or professional workstation, the JD-Xi succeeds brilliantly as a portable groovebox and songwriting tool, offering far more depth and personality than its size suggests.
